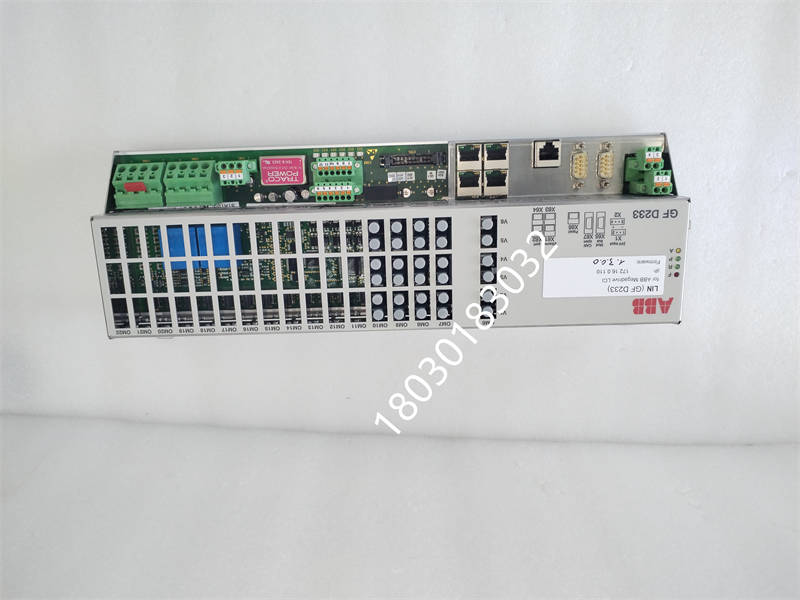

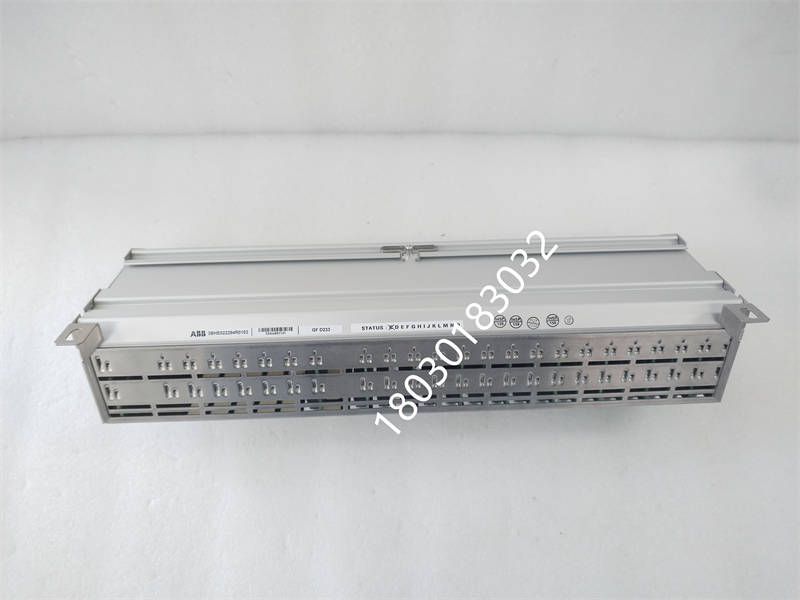

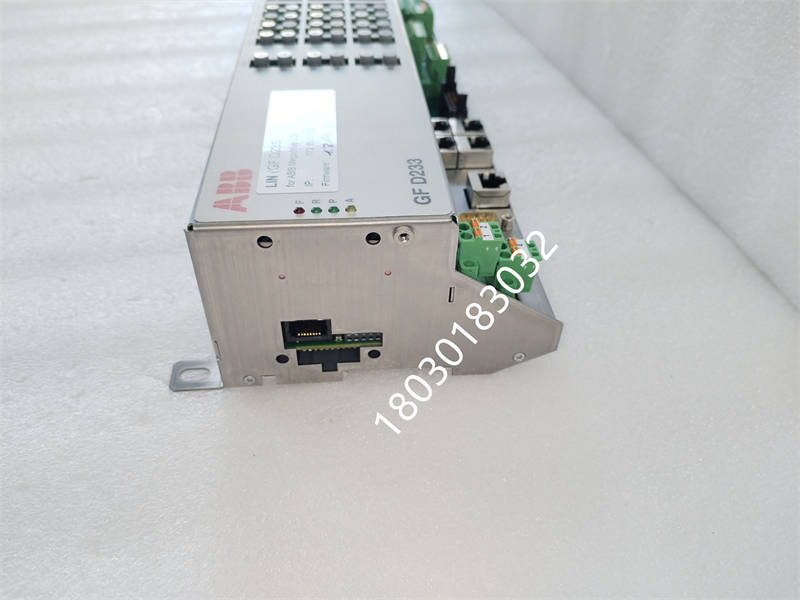

GFD233A103 3BHE022294R0103 是 ABB 公司生產的一款高性能勵磁處理器模塊,廣泛應用于電力發電、工業自動化等領域。

產品概述
型號:GFD233A103 3BHE022294R0103
制造商:ABB
類別:勵磁處理器模塊
應用領域:電力發電、工業自動化、電機控制等
技術特點
高性能處理器:
配備高性能的處理器,能夠快速響應和處理復雜的控制任務,確保系統的高效運行。
多用途控制:
設計用于多種控制應用,支持通過編程和配置滿足不同的控制需求,適用于多種工業場景。
通信接口:
通常配備標準的通信接口(如以太網、Modbus、Profibus 等),便于與其他設備或控制系統進行數據交換和集成。
緩沖器功能:
在輸出時,模塊使用緩沖器暫存由主機高速傳來的數據,然后以 I/O 設備所具有的速率將數據傳送給 I/O 設備。同樣,在輸入時,緩沖器用于暫存從 I/O 設備送來的數據,待接收到一批數據后,再將緩沖器中的數據高速地傳送給主機。
差錯控制:
具備差錯檢測功能,若發現傳送中出現了錯誤,通常是將差錯檢測碼置位,并向 CPU 報告,于是 CPU 將本次傳送來的數據作廢,并重新進行一次傳送,保證數據輸入的正確性。
靈活配置:
支持多種配置選項,用戶可以通過軟件設置或硬件跳線調整控制參數和保護功能,適應不同發電機和應用的需求。
功能與應用
勵磁系統控制:
用于控制發電機的勵磁系統,確保適當?shù)碾娏魍ㄟ^勵磁線圈,從而影響發電機的電磁場,進而控制發電機的輸出。
發電機保護:
具備全面的保護功能,如過電流保護、欠電壓保護、過溫保護等,確保發電機的安全運行。
工業自動化:
在工業自動化系統中,執行實時控制、監測和數據處理任務,提高生產效率和系統穩定性。
能源管理:
在能源管理系統中執行任務,監測能源消耗并進行優化,幫助企業降低能耗和成本。
優勢
高度集成:將勵磁控制的核心功能集成于一體,包括電壓和電流調節、功率因數控制、保護功能等。
易于集成:與 ABB 的其他發電機控制系統和設備配合使用,可以方便地集成到現有的控制系統中。
高可靠性:經過嚴格的測試和驗證,確保在各種惡劣環境下都能提供可靠的性能。
用戶友好:配備直觀的用戶界面,方便操作人員進行監控、參數調整和故障診斷。

應用場景
電力發電:控制和監測發電機組、電網和其他電力設備,確保電力系統的穩定性和效率。
制造業:控制生產線、機械設備和工藝流程,提高生產效率和產品質量。
交通系統:控制交通信號、監測交通流量和協調交通流動,提升交通管理的智能化水平。
建筑自動化:控制照明、空調、安防系統等,實現建筑的智能化管理。
GFD233A103 3BHE02294R0103 is a high-performance excitation processor module produced by ABB, widely used in fields such as power generation and industrial automation.
product overview
model: GFD233A103 3BHE022294R0103
manufacturer: ABB
Category: Excitation Processor Module
Application areas: power generation, industrial automation, motor control, etc
FEATURES
High performance processor:
Equipped with high-performance processors, capable of quickly responding to and processing complex control tasks, ensuring the efficient operation of the system.
Multi purpose control:
Designed for various control applications, supporting programming and configuration to meet different control needs, suitable for various industrial scenarios.
Communication interface:
Usually equipped with standard communication interfaces such as Ethernet, Modbus, Profibus, etc., for easy data exchange and integration with other devices or control systems.
Buffer function:
When outputting, the module uses a buffer to temporarily store the data transmitted from the host at high speed, and then transfers the data to the I/O device at the rate that the I/O device has. Similarly, during input, the buffer is used to temporarily store data sent from the I/O device, and after receiving a batch of data, the data in the buffer is quickly transmitted to the host.
Error control:
Equipped with error detection function, if an error is found during transmission, the error detection code is usually set and reported to the CPU. The CPU then cancels the data transmitted this time and performs a new transmission to ensure the correctness of the data input.
Flexible configuration:
Supporting multiple configuration options, users can adjust control parameters and protection functions through software settings or hardware jumpers to meet the needs of different generators and applications.
function and application
Excitation system control:
Used to control the excitation system of the generator, ensuring appropriate current passes through the excitation coil, thereby affecting the electromagnetic field of the generator and controlling its output.
Generator protection:
It has comprehensive protection functions, such as overcurrent protection, undervoltage protection, over temperature protection, etc., to ensure the safe operation of the generator.
Industrial automation:
In industrial automation systems, real-time control, monitoring, and data processing tasks are performed to improve production efficiency and system stability.
Energy Management:
Execute tasks in the energy management system, monitor energy consumption and optimize it to help businesses reduce energy consumption and costs.
advantage
Highly integrated: Integrating the core functions of excitation control into one, including voltage and current regulation, power factor control, protection functions, etc.
Easy to integrate: When used in conjunction with ABB's other generator control systems and equipment, it can be easily integrated into existing control systems.
High reliability: Through rigorous testing and validation, it ensures reliable performance in various harsh environments.
User friendly: Equipped with an intuitive user interface, it facilitates monitoring, parameter adjustment, and fault diagnosis for operators.
Application scenarios
Electric power generation: Control and monitor generator sets, power grids, and other electrical equipment to ensure the stability and efficiency of the power system.
Manufacturing industry: Control production lines, mechanical equipment, and process flow to improve production efficiency and product quality.
Transportation system: Control traffic signals, monitor traffic flow, coordinate traffic flow, and enhance the intelligence level of traffic management.
Building automation: Control lighting, air conditioning, security systems, etc., to achieve intelligent management of buildings.
