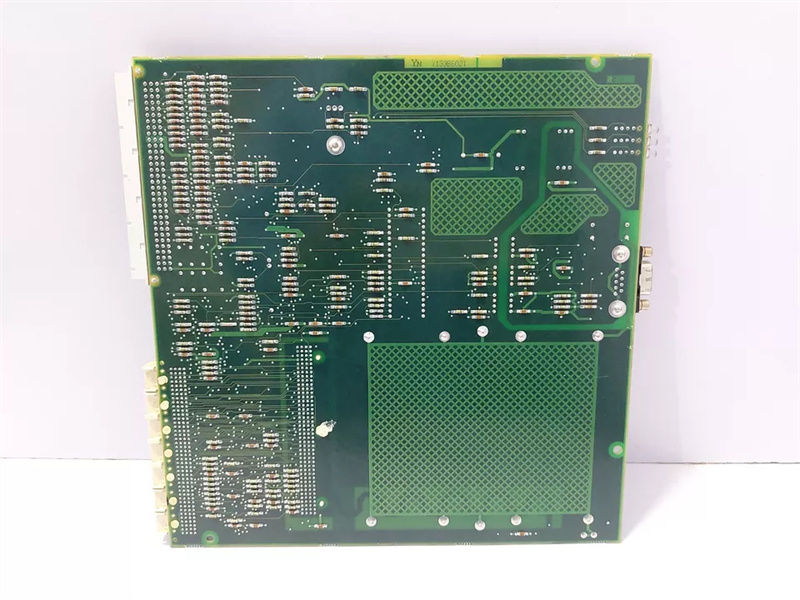

ABB PM153 3BSE003644R1 控制器模塊
一、核心功能與技術規格
ABB PM153 3BSE003644R1 是S800 I/O系統中的關鍵控制器模塊，專為工業自動化設計，支持分布式控制系統（DCS）的高效運行。其技術特性如下：
信號處理與接口
模擬信號轉換：作為AC800F Freelance控制器與現場設備的橋梁，將傳感器或變送器的模擬信號（電壓、電流、電阻）轉換為數字信號，供控制系統處理。
輸入通道配置：提供8或16個隔離輸入通道，支持多傳感器并行接入，適應復雜監測需求。
精度與分辨率
高分辨率ADC：采用12-16位模數轉換，確保信號轉換的精確性，減少誤差。
低噪聲設計：優化信號鏈路，提升信噪比，保障數據可靠性。
通信與擴展性
以太網支持：集成Ethernet通信接口，實現與上位機及網絡設備的無縫連接。
模塊化擴展：支持通過S800總線擴展多個PM151模塊，靈活增加模擬輸入容量。
診斷與可靠性
內置診斷功能：實時監測模塊狀態，支持故障預警與快速排查。
冗余設計：兼容冗余配置，提升系統容錯能力，確保關鍵任務的連續性。
二、典型應用場景
該模塊廣泛應用于化工、電力、石油、水處理等行業的自動化控制場景，具體案例包括：
過程控制
化工廠：監測反應釜溫度、壓力、液位等參數，優化工藝流程。
石油平臺：實時采集井口數據，支持遠程監控與決策。
電力設施
發電廠：控制鍋爐、汽輪機運行，優化發電效率。
變電站：監控電力設備狀態，實現自動化調度。
水處理系統
泵站控制：調節水泵轉速與閥門開度，優化水處理流程。
水質監測：實時分析水質參數，確保處理效果。
三、市場支持與服務
供應鏈保障：
現貨供應：廈門多家供應商（如阿米控技術、雄霸電子）提供全新原裝現貨，支持快速發貨。
價格透明：去除中間環節，提供行業競爭力價格。
質保服務：
一年質保：覆蓋硬件故障與性能問題，提供無憂售后支持。
四、技術生態與兼容性
系統兼容性：
適配ABB AC800F Freelance控制系統，支持無縫集成。
兼容Modbus、Profibus等工業協議，便于與其他設備互聯。
擴展配置：
支持多模塊級聯，構建分布式I/O架構，提升系統擴展性。
ABB PM153 3BSE003644R1 controller module
1、 Core functions and technical specifications
ABB PM153 3BSE003644R1 is a key controller module in the S800 I/O system, designed specifically for industrial automation and supporting efficient operation of distributed control systems (DCS). Its technical characteristics are as follows:
Signal Processing and Interface
Analog signal conversion: As a bridge between the AC800F Freelance controller and field devices, it converts the analog signals (voltage, current, resistance) of sensors or transmitters into digital signals for processing by the control system.
Input channel configuration: Provides 8 or 16 isolated input channels, supports parallel access of multiple sensors, and adapts to complex monitoring requirements.
Accuracy and Resolution
High resolution ADC: using 12-16 bit analog-to-digital conversion to ensure the accuracy of signal conversion and reduce errors.
Low noise design: Optimize signal links, improve signal-to-noise ratio, and ensure data reliability.
Communication and Scalability
Ethernet support: Integrated Ethernet communication interface to achieve seamless connection with upper computer and network devices.
Modular Expansion: Supports expanding multiple PM151 modules through S800 bus, flexibly increasing analog input capacity.
Diagnosis and reliability
Built in diagnostic function: Real time monitoring of module status, supporting fault warning and quick troubleshooting.
Redundancy design: Compatible with redundant configurations, enhances system fault tolerance, and ensures continuity of critical tasks.
2、 Typical application scenarios
This module is widely used in automation control scenarios in industries such as chemical, power, petroleum, and water treatment. Specific cases include:
process control
Chemical plant: Monitor parameters such as reactor temperature, pressure, and liquid level to optimize the process flow.
Oil platform: Real time collection of wellhead data, supporting remote monitoring and decision-making.
Power facilities
Power plant: Control the operation of boilers and turbines to optimize power generation efficiency.
Substation: Monitor the status of power equipment and achieve automated scheduling.
Water treatment system
Pump station control: Adjust the pump speed and valve opening to optimize the water treatment process.
Water quality monitoring: Real time analysis of water quality parameters to ensure treatment effectiveness.
3、 Market support and services
Supply chain assurance:
Spot supply: Multiple suppliers in Xiamen, such as Amicon Technology and Xiongba Electronics, provide brand new original stock and support fast shipping.
Price transparency: Remove intermediate links and provide competitive prices in the industry.
Quality Assurance Service:
One year warranty: covering hardware failures and performance issues, providing worry free after-sales support.
4、 Technology Ecology and Compatibility
System compatibility:
Compatible with ABB AC800F Freelance control system, supporting seamless integration.
Compatible with industrial protocols such as Modbus and Profibus, making it easy to interconnect with other devices.
Extended configuration:
Support multi module cascading, build distributed I/O architecture, and enhance system scalability.
