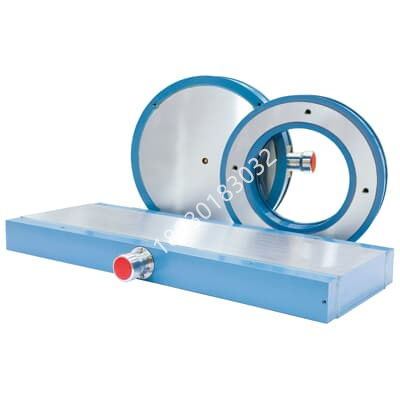

ABB壓頭傳感器PFVL141V、PFVL141C和PFVL141R是ABB公司提供的壓頭傳感器產品，它們在工業應用中發揮著重要的作用，特別是在需要精確測量力的場合。以下是對這三種壓頭傳感器的詳細介紹：
PFVL141V壓頭傳感器
1. 主要特點與用途
PFVL141V是一種矩形壓頭傳感器，可根據實際需求定制尺寸，長度通常為30mm的倍數，對于超過900mm的長度，則需為60mm的倍數。
寬度同樣可選，且為30mm的倍數。
該傳感器適用于0.63至56MN的軋制力測量，廣泛應用于鋼廠、電廠等需要高精度力測量的場合。
不銹鋼邊條為壓頭線圈和內部部件提供了良好的保護。
2. 技術參數
精度等級：±0.5%（% of Fnom）
線性偏差：≤±0.5%（% of Fnom）
磁滯率：≤0.2%（% of Fnom）
重復性誤差：≤±0.1%（% of Fnom）
工作溫度：-10°C至+90°C（最大允許臨時溫度+110°C，存儲溫度-40°C至+90°C）
3. 選型與訂購
用戶在訂購時需要明確型號名稱（PFVL141V）、額定載荷（如0.63MN、1.0MN等）、以及壓頭的寬度和長度。
PFVL141C壓頭傳感器
1. 主要特點與用途
PFVL141C是圓形壓頭傳感器，具體測量范圍和標準尺寸可能因型號而異，但通常具有較高的測量精度和穩定性。
適用于電廠、鋼廠等需要測量大范圍力的工業環境。
2. 選型與訂購
用戶在訂購時需要明確型號（如PFVL141C-XXMN，其中XX代表具體測量范圍）、以及任何特定的尺寸要求。
PFVL141R壓頭傳感器
1. 主要特點與用途
PFVL141R壓頭傳感器（注意：這里的信息可能相對較為有限，因?yàn)椤癛”型號的具體參數和用途可能因產品更新而有所變化）通常也具備高精度和穩定的力測量能力。
適用于需要精確測量力的各種工業應用。
2. 選型與訂購
用戶在訂購時需要明確型號（PFVL141R）、額定載荷、以及任何特定的尺寸或性能要求。
The ABB pressure head sensors PFVL141V, PFVL141C, and PFVL141R are pressure head sensor products provided by ABB, which play an important role in industrial applications, especially in situations where precise force measurement is required. The following is a detailed introduction to these three types of pressure head sensors:
PFVL141V Pressure Head Sensor
1. Main features and applications
PFVL141V is a rectangular pressure sensor that can be customized in size according to actual needs. The length is usually a multiple of 30mm, and for lengths exceeding 900mm, it needs to be a multiple of 60mm.
The width is also optional and is a multiple of 30mm.
This sensor is suitable for measuring rolling force ranging from 0.63 to 56MN and is widely used in applications such as steel mills and power plants that require high-precision force measurement.
The stainless steel edge strip provides good protection for the pressure head coil and internal components.
2. Technical parameters
Accuracy level: ± 0.5% (% of Fnom)
Linear deviation: ≤± 0.5% (% of Fnom)
Hysteresis rate: ≤ 0.2% (% of Fnom)
Repetitive error: ≤± 0.1% (% of Fnom)
Working temperature: -10 ° C to+90 ° C (maximum allowable temporary temperature+110 ° C, storage temperature -40 ° C to+90 ° C)
3. Selection and ordering
Users need to specify the model name (PFVL141V), rated load (such as 0.63MN, 1.0MN, etc.), as well as the width and length of the indenter when placing an order.
PFVL141C Pressure Head Sensor
1. Main features and applications
PFVL141C is a circular pressure sensor, and the specific measurement range and standard size may vary depending on the model, but it usually has high measurement accuracy and stability.
Suitable for industrial environments such as power plants and steel mills that require measurement of large-scale forces.
2. Selection and ordering
Users need to specify the model (such as PFVL141C-XXMN, where XX represents the specific measurement range) and any specific size requirements when placing an order.
PFVL141R Pressure Head Sensor
1. Main features and applications
The PFVL141R pressure head sensor (note: the information here may be relatively limited as the specific parameters and uses of the "R" model may vary due to product updates) typically also has high-precision and stable force measurement capabilities.
Suitable for various industrial applications that require precise measurement of force.
2. Selection and ordering
Users need to specify the model (PFVL141R), rated load, and any specific size or performance requirements when placing an order.
