cs2000-9944電流互感器

cs2000-9944電流互感器

cs2000-9944電流互感器

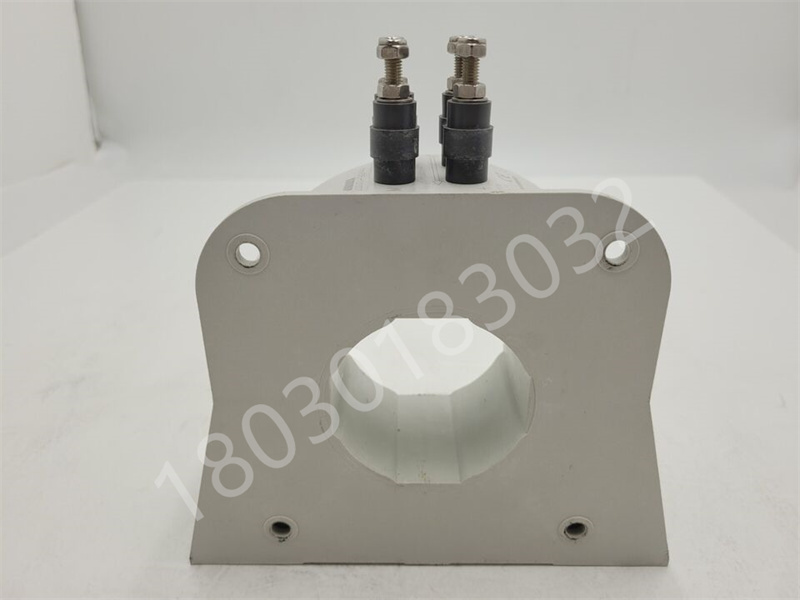

CS2000-9944并非電流互感器，而是環形電流霍爾傳感器。以下是關于CS2000-9944環形電流霍爾傳感器的詳細解析：

一、產品概述

CS2000-9944環形電流霍爾傳感器是一種基于霍爾效應的電流測量設備，用于檢測環形導體中的電流。它利用霍爾元件在磁場中的特性，將電流信號轉換為電壓信號，從而實現對電流的精確測量。

二、主要特點

1. 高精度：采用先進的霍爾技術和精密的電路設計，確保測量結果的準確性。
2. 寬測量范圍：適用于不同大小的電流測量需求，具有較高的適應性。
3. 快速響應：能夠迅速響應電流變化，提供實時的電流測量數據。
4. 抗干擾能力強：具有良好的電磁屏蔽設計，能夠有效抵抗外部電磁干擾。
5. 可靠性高：采用高品質的材料和制造工藝，確保產品的長期穩定運行。

三、機械特性

• 外形尺寸：132mm105mm52mm，緊湊的設計便于安裝和使用。
• 外殼：IP30防護等級，波浪紋鋁制加強機殼，提供良好的防護性能。
• 安裝方式：支持35mm DIN導軌安裝，方便用戶根據實際需求進行安裝。
• 凈重：800g，重量適中，便于搬運和安裝。

四、工作環境

• 工作溫度：標準工作溫度為-10℃至70℃，同時提供-40℃至+85℃寬溫可選，滿足不同工作環境下的需求。
• 相對濕度：≤90%（無冷凝），確保在潮濕環境下也能正常工作。
• 存放溫度：-40℃至80℃，確保產品在儲存過程中的性能穩定。

五、測試認證

CS2000-9944環形電流霍爾傳感器通過了多項國際標準的測試認證，包括但不限于：

• IEC61000-4-2（ESD）：空氣放電±8KV，接觸放電±4KV。
• IEC61000-4-3（RS）：10V/m（80-1000MHz）。
• IEC61000-4-4（EFT）：L-N-PE：±2KV，數據線：±1.0KV。
• IEC61000-4-5（Surge）：L-N：±1KV，L/N-PE：±2KV，數據線：±0.5KV。
• IEC61000-4-6（CS）：10V（150kHz-80MHz）。
• IEC61000-4-8（MS）：長時30A/m，短時300A/m。
• IEC61000-4-11（Dips）：確保在電磁干擾環境下仍能穩定工作。

六、應用場景

CS2000-9944環形電流霍爾傳感器廣泛應用于工業自動化、電力監控、新能源、軌道交通等領域，為各種電流測量需求提供可靠的解決方案。

CS2000-9944 is not a current transformer, but a ring current Hall sensor. The following is a detailed analysis of the CS2000-9944 ring current Hall sensor:

1、 Product Overview

The CS2000-9944 ring current Hall sensor is a current measurement device based on the Hall effect, used to detect the current in a ring conductor. It utilizes the characteristics of Hall elements in a magnetic field to convert current signals into voltage signals, thereby achieving accurate measurement of current.

2、 Main features

High precision: Adopting advanced Hall technology and precise circuit design to ensure the accuracy of measurement results.

Wide measurement range: suitable for measuring current of different sizes, with high adaptability.

Quick response: able to quickly respond to changes in current and provide real-time current measurement data.

Strong anti-interference ability: With excellent electromagnetic shielding design, it can effectively resist external electromagnetic interference.

High reliability: Using high-quality materials and manufacturing processes to ensure the long-term stable operation of the product.

3、 Mechanical characteristics

Dimensions: 132mm105mm52mm, compact design for easy installation and use.

Shell: IP30 protection level, wave patterned aluminum reinforced shell, providing good protection performance.

Installation method: Supports 35mm DIN rail installation, making it convenient for users to install according to their actual needs.

Net weight: 800g, moderate weight, easy to handle and install.

4、 Working environment

Working temperature: The standard working temperature is -10 ℃ to 70 ℃, and a wide temperature range of -40 ℃ to+85 ℃ is available to meet the needs of different working environments.

Relative humidity: ≤ 90% (no condensation), ensuring normal operation even in humid environments.

Storage temperature: -40 ℃ to 80 ℃, ensuring stable performance of the product during storage.

5、 Test certification

The CS2000-9944 ring current Hall sensor has passed multiple international standard testing certifications, including but not limited to:

IEC61000-4-2 (ESD): Air discharge ± 8KV, contact discharge ± 4KV.

IEC61000-4-3 (RS): 10V/m (80-1000MHz).

IEC61000-4-4 (EFT): L-N-PE: ± 2KV, data line: ± 1.0KV.

IEC61000-4-5 (Surge): L-N: ± 1KV, L/N-PE: ± 2KV, data line: ± 0.5KV.

IEC61000-4-6 (CS): 10V (150kHz-80MHz).

IEC61000-4-8 (MS): Long term 30A/m, short term 300A/m.

IEC61000-4-11 (Dips): Ensure stable operation even in electromagnetic interference environments.

6、 Application scenarios

The CS2000-9944 ring current Hall sensor is widely used in industrial automation, power monitoring, new energy, rail transit and other fields, providing reliable solutions for various current measurement needs.

需要更多型號請聯系我們：
