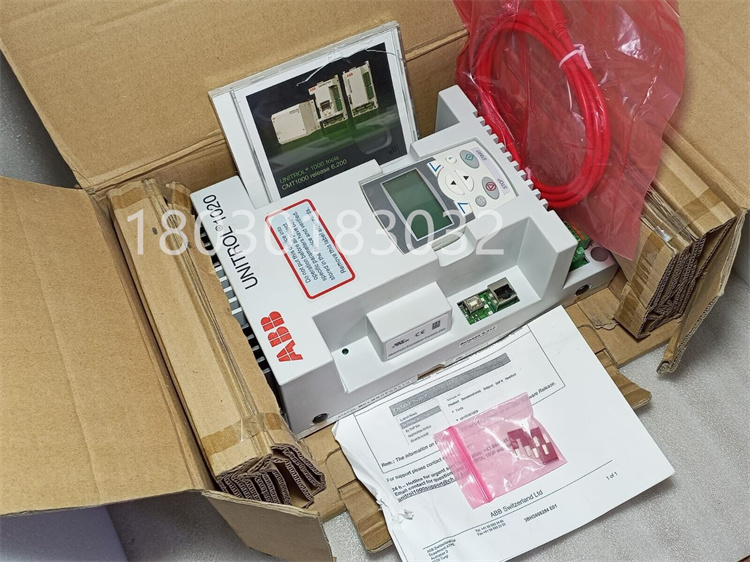

3BHE030579R0006 UNITROL 1020-0006 ABB勵磁電壓調節器
3BHE030579R0006 UNITROL 1020-0006 ABB勵磁電壓調節器
3BHE030579R0006 UNITROL 1020-0006 ABB勵磁電壓調節器
3BHE030579R0006 UNITROL 1020-0006 ABB勵磁電壓調節器是一款功能強大、性能穩定的電壓調節設備，由ABB公司生產，并屬于UNITROL 1000系列。以下是對該產品的詳細解析：
一、產品概述
型號：3BHE030579R0006 UNITROL 1020-0006
品牌：ABB
功能：勵磁電壓調節，確保發電機輸出電壓的穩定性和負載分配的合理性。
二、主要特點
先進技術與設計：
UNITROL 1020結合了性能控制和簡單設計的電源電路，是一個強大的小型間接勵磁系統。
基于先進的微處理器技術，采用IGBT半導體器件，允許持續操作的電流輸出高達10ADC。
高性能與穩定性：
能夠在嚴苛條件和不同溫度范圍下進行高性能工作，并且完全符合DNV和UL標準。
適用于各種環境溫度和惡劣的環境條件，可直接安裝在機器上，保護所有帶電部件，防止電擊。
增強的通信與記錄功能：
相較于之前的版本，UNITROL 1020提供了以太網、USB連接、數據和事件記錄等許多新功能。
非易失性閃存可存儲事件和數據日志，以便進行故障分析和快速故障排除。
高精度與靈活性：
控制精度為±0.5%，提供精確的電壓控制，確保電力系統的電壓在設定的范圍內。
本地人機界面可顯示AVR狀態、活動限幅器和測量值，便于用戶進行操作和監控。
易于維護與配置：
設計簡潔明了，維護方便。用戶可以通過友好的人機界面或遠程監控系統輕松地了解設備的運行狀態和性能數據。
可通過本地人機界面或CMT1000軟件進行配置，支持自由配置測量和模擬或數字輸入/輸出。
三、應用領域
3BHE030579R0006 UNITROL 1020-0006 ABB勵磁電壓調節器廣泛應用于電力系統中的發電、輸電和配電環節，以及工業、商業和居民用電等領域的電力系統。它通常用于發電機的電壓控制和調節，以確保電力系統中的電壓穩定性和負載分布。
四、技術參數
輸入電壓范圍：380-480V
輸出電壓范圍：0-416V
輸出頻率范圍：0-65Hz
額定電流：24A
額定功率：22kW
控制精度：±0.5%
3BHE030579R0006 UNITOL 1020-0006 ABB excitation voltage regulator is a powerful and stable voltage regulation device produced by ABB and belongs to the UNITOL 1000 series. The following is a detailed analysis of the product:
1、 Product Overview
Model: 3BHE03579R0006 UNITOL 1020-0006
Brand: ABB
Function: Excitation voltage regulation to ensure the stability of the generator output voltage and the rationality of load distribution.
2、 Main features
Advanced Technology and Design:
The UNITROL 1020 combines performance control and a simple designed power circuit, making it a powerful small indirect excitation system.
Based on advanced microprocessor technology and using IGBT semiconductor devices, it allows for continuous operation with a current output of up to 10ADC.
High performance and stability:
Capable of performing high-performance work under harsh conditions and different temperature ranges, and fully compliant with DNV and UL standards.
Suitable for various environmental temperatures and harsh conditions, it can be directly installed on the machine to protect all live parts and prevent electric shock.
Enhanced communication and recording capabilities:
Compared to previous versions, UNITROL 1020 offers many new features such as Ethernet, USB connectivity, data and event logging.
Non volatile flash memory can store event and data logs for fault analysis and quick troubleshooting.
High precision and flexibility:
The control accuracy is ± 0.5%, providing precise voltage control to ensure that the voltage of the power system is within the set range.
The local human-machine interface can display AVR status, activity limiter, and measurement values, making it easy for users to operate and monitor.
Easy to maintain and configure:
The design is concise and clear, and easy to maintain. Users can easily understand the operating status and performance data of the device through a user-friendly human-machine interface or remote monitoring system.
It can be configured through the local human-machine interface or CMT1000 software, supporting free configuration of measurement and analog or digital input/output.
3、 Application Fields
3BHE030579R0006 UNITOL 1020-0006 ABB excitation voltage regulator is widely used in the power generation, transmission, and distribution links of power systems, as well as in industrial, commercial, and residential power systems. It is commonly used for voltage control and regulation of generators to ensure voltage stability and load distribution in the power system.
4、 Technical parameters
Input voltage range: 380-480V
Output voltage range: 0-416V
Output frequency range: 0-65Hz
Rated current: 24A
Rated power: 22kW
Control accuracy: ± 0.5%
