AB羅克韋爾SST系列的SST-PB3-CLX-RLL通信模塊是一款專為工業自動化應用設計的高性能產品，它能夠提供可靠的通信并實現與各種控制系統的無縫集成 。該模塊具備以下特性：

型號為SST-PB3-CLX-RLL，具有以太網通信接口。

輸入電壓為24V DC，工作溫度范圍在-10℃至60℃之間。

支持高速數據傳輸，具備堅固耐用的結構。

易于安裝和配置，支持多種協議。

設計用于提高控制系統的性能和靈活性 。

此外，SST-PB3-CLX-RLL模塊支持Profibus-DP主站和從站模式，能夠與Rockwell ControlLogix控制器進行數據交換，實現設備間的信息傳遞和控制 。它配備了帶有9個引腳的PROFIBUS D-sub母頭模塊，用于通信，并支持直接模式和分頁模式的數據傳輸，允許在I/O處理器映像中映射PROFIBUS數據或訪問用戶定義的數據空間 。

SST-PB3-CLX-RLL模塊還具備以下高級功能：

高速確定性通信能力。

內置的LED和4字符顯示屏，便于進行簡易診斷。

能夠同時管理DP主站和從站模式。

允許在PLC運行模式下更改PROFIBUS配置。

動態添加或移除PROFIBUS從站從掃描列表。

支持CommDTM驅動程序，適用于FDT框架工程軟件 。

模塊還符合RoHS標準，并通過CE、UL、cUL等認證，適用于極端溫度范圍的CLXT模塊還具有敷形涂層，可在-25至70°C的環境溫度下操作 。

SST-PB3-CLX-RLL模塊通過其附加配置文件（AOP），能夠使用RSLogix 5000軟件輕松集成到ControlLogix系統中，支持多達8個SST模塊的使用，并支持本地和遠程控制 。此外，遠程鏈接庫（Remote Link Library）軟件提供了遠程監控或下載更改Profibus配置的功能，增加了模塊的靈活性和便利性 。

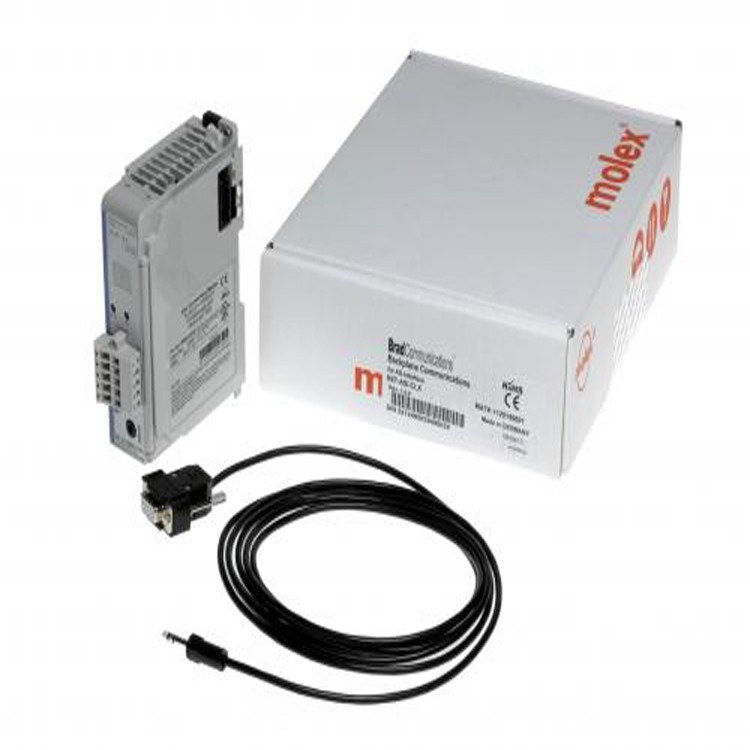

The SST-PB3-CLX-RLL communication module from the AB Rockwell SST family is a high-performance product designed for industrial automation applications that provides reliable communication and seamless integration with a wide range of control systems. The module has the following features:

Model SST-PB3-CLX-RLL with Ethernet communication interface.

The input voltage is 24V DC and the operating temperature range is between -10 ° C and 60 ° C.

Supports high-speed data transmission and has a robust construction.

Easy to install and configure, supports multiple protocols.

Designed to improve the performance and flexibility of the control system.

In addition, the SST-PB3-CLX-RLL module supports Profibus-DP master and slave modes, and can exchange data with the Rockwell ControlLogix controller to realize information transfer and control between devices. It is equipped with a PROFIBUS D-sub female header module with 9 pins for communication and supports data transfer in both direct mode and paging mode, allowing mapping PROFIBUS data in I/O processor images or access to user-defined data Spaces.

The SST-PB3-CLX-RLL module also has the following advanced features:

High speed deterministic communication capability.

Built-in LED and 4-character display for easy diagnosis.

Able to manage both DP master and slave modes.

Allows you to change the PROFIBUS configuration in PLC operation mode.

Dynamically add or remove PROFIBUS slave scan list.

CommDTM driver support for FDT framework engineering software.

The modules are also RoHS compliant and certified CE, UL, cUL, etc. CLXT modules for extreme temperature ranges also feature a form coating for operation at ambient temperatures from -25 to 70°C.

The SST-PB3-CLX-RLL module, through its additional configuration file (AOP), can be easily integrated into the ControlLogix system using the RSLogix 5000 software, supports the use of up to eight SST modules, and supports local and remote control. In addition, the Remote Link Library software provides the ability to remotely monitor or download changes to the Profibus configuration, increasing the flexibility and convenience of the module.
