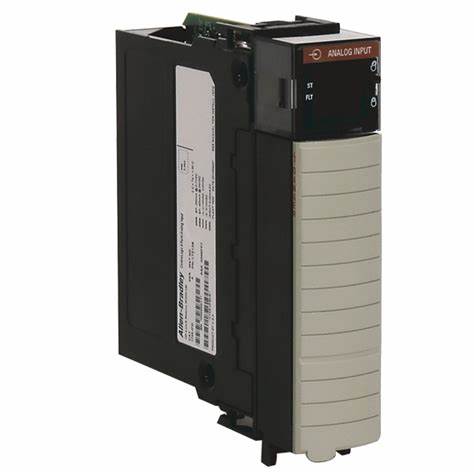

A-B羅克韋爾 1756-IF8I 不是伺服驅動器，而是一款模擬輸入的I/O模塊，屬于羅克韋爾自動化（Rockwell Automation）的ControlLogix產品系列。以下是對該模塊的詳細介紹：

1. 基本功能：
• A-B羅克韋爾 1756-IF8I是一款模擬輸入的I/O模塊，用于工業自動化控制系統中，將模擬信號（如溫度、壓力、流量等）轉換為數字信號，以供PLC（可編程邏輯控制器）進行處理和控制。
2. 技術參數：
• 通道數：具有8個模擬輸入通道。
• 輸入信號類型：可配置為+/-10VDC、0-10VDC、0-5VDC和0-20mA的輸入信號。
• 分辨率：+/-10VDC的分辨率為15位，其他信號類型的分辨率為16位。
• 掃描時間：因接線配置而異，對于單線布線，掃描時間為16-488 ms；對于4點差動輸入，掃描時間是8-244 ms；對于2點差動輸入則為5-122 ms。
3. 設計特點：
• 采用模塊化設計，可以方便地安裝到ControlLogix控制系統中，滿足不同應用的需求。
• 支持多種接線方式：?jiǎn)味私泳€、差分接線和高速模式差分接線。
• 使用Sigma-Delta轉換方法，并以整數模式（左對齊，2秒補碼）保存IEEE 32位浮點寄存器中的接收信號。
4. 應用場景：
• 該模塊通常用于連接模擬信號生成儀器和設備，如變送器、傳感器、信號分離器、信號隔離器、面板儀表等。
• 在工業自動化控制系統中，用于采集模擬信號，并將其轉換為數字信號，以供PLC進行進一步的處理和控制。
5. 其他信息：
• 1756-IF8I模塊的安裝實例數量實際上沒有限制，大多數ControlLogix控制器能夠提供多達4000個模擬I/O信號。
• 可沿控制器安裝在本地機箱中或安裝在分布式I/O機架中。

The A-B Rockwell 1756-IF8I is not A servo drive, but an analog input I/O module from Rockwell Automation's ControlLogix product family. The following is a detailed introduction to the module:

Basic functions:

The A-B Rockwell 1756-IF8I is an analog input I/O module used in industrial automation control systems to convert analog signals (such as temperature, pressure, flow, etc.) into digital signals for PLC (Programmable logic controller) processing and control.

Technical parameters:

Number of channels: Has 8 analog input channels.

Input signal type: Can be configured as +/-10VDC, 0-10VDC, 0-5VDC, and 0-20mA input signals.

Resolution: 15 bits for +/-10VDC and 16 bits for other signal types.

Scanning time: varies depending on wiring configuration, for single wire wiring, scanning time is 16-488 ms; For a 4-point differential input, the scan time is 8-244 ms; For 2-point differential inputs it is 5-122 ms.

Design features:

With modular design, it can be easily installed into the ControlLogix control system to meet the needs of different applications.

Supports multiple connection modes: single-ended connection, differential connection, and high-speed differential connection.

The received signal in an IEEE 32-bit floating-point register is saved using the Sigma-Delta conversion method and in integer mode (left-justified, 2-second complement).

Application scenario:

The module is commonly used to connect analog signal generation instruments and devices such as transmitters, sensors, signal separators, signal isolators, panel meters, etc.

In industrial automation control systems, it is used to collect analog signals and convert them into digital signals for further processing and control by PLC.

Additional information:

There is virtually no limit to the number of installed instances of the 1756-IF8I module, with most ControlLogix controllers capable of delivering up to 4000 analog I/O signals.

It can be installed along the controller in a local chassis or in a distributed I/O rack.
