廈門雄霸 > 挑產品 > A-B/羅克韋爾/PLC

A-B/羅克韋爾/PLC

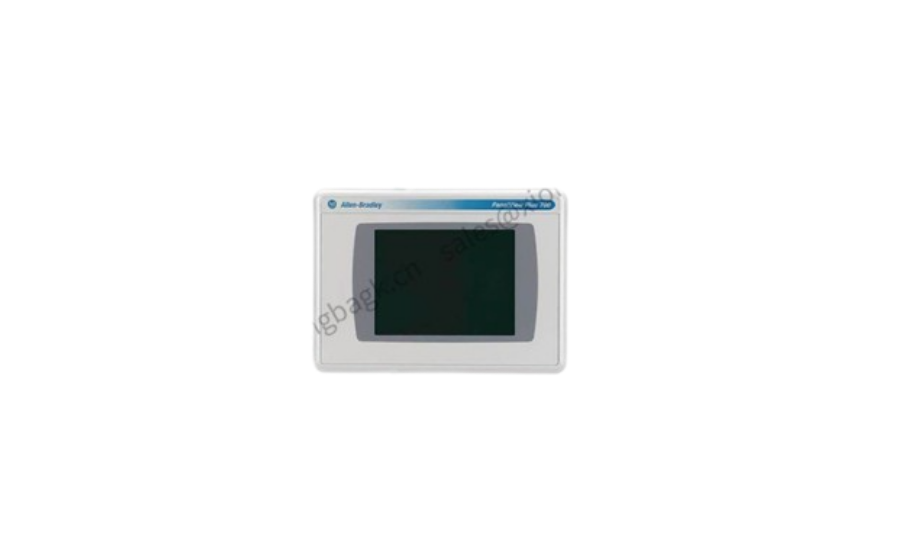

2711P-T12C4D8 PanelView Plus 6 1250操作終端人機界面(HMI )

品牌：A-B

型號：2711P-T12C4D8

訂貨號：2711P-T12C4D8

上架日期：2023-08-21 18:24

咨詢熱線：18030183032
立即咨詢

產品詳情

產品詳情

基本數據:2711P-T12C4D8 PanelView Plus 6 1250操作終端人機界面(HMI )

目錄號為2711P-T12C4D8的PanelNiew Plus 6操作員終端屬于PanelNiew Plus 6 1250操作員終端的子類別。該操作員終端通常被稱為人機界面(HMI),用于為過程和機器操作員提供系統的集中監控和控制點。這使得控制更加準確、有效和響應更快，并降低了人為操作錯誤的風險。

該電子設備由18-30VDC的外部電壓范圍供電。它還配備了512MB隨機存取存儲器(RAM)和512MB閃存的集成內存。內部存儲器不能升級，但可以安裝內存擴展設備，如1784-SD1和1784-SD2安全數字卡。它也可以安裝外部閃存驅動器，用于可移動存儲。

該操作員終端配有一個12.1英寸的彩色圖形屏幕，適用于實現工廠的彩色圖形顯示，包括描述儀器和設備狀態的動畫。它通過模擬電阻式觸摸屏界面進行操作，允許與運行時環境中顯示的對象進行直接交互。

2711P-T12C4D8的裝運重量和尺寸約為10磅和20×14×8英寸。以太網IRP(以太網工業協議)是一個開放的工業網絡，支持實時I/O消息以及消息交換。通過使用網絡和標準以太網連接，以太網端口連接到以太網/IP網絡上的控制器。該端口可用于應用程序傳輸和打印。以太網/IP屏幕顯示數據并允許用戶修改PanelView終端的一些以太網/IP通信設置。該模塊有自己唯一的IP地址。此端口有一個用于網絡通信的RJ45 10/100ba se-T連接器，它支持MDI/MDI-X連接。參數隨應用程序—起下載。

Product details

Basic data :2711P-T12C4D8 PanelView Plus 6 1250 Operator terminal Man-Machine Interface (HMI)

PanelNiew Plus 6 Operator terminals with directory number 2711P-T12C4D8 belong to the subcategory of PanelNiew Plus 6 1250 operator terminals. This operator terminal, often referred to as the Human Machine Interface (HMI), is used to provide a centralized monitoring and control point of the system for process and machine operators. This makes controls more accurate, effective and responsive, and reduces the risk of human error.

The electronic device is powered by an external voltage range of 18-30VDC. It also comes with integrated memory of 512MB of random access memory (RAM) and 512MB of flash memory. Internal memory cannot be upgraded, but memory expansion devices such as the 1784-SD1 and 1784-SD2 secure digital cards can be installed. It can also be installed with an external flash drive for removable storage.

The operator terminal is equipped with a 12.1-inch color graphics screen suitable for implementing color graphics displays of the plant, including animations describing the status of instruments and equipment. It operates through a simulated resistive touch screen interface, allowing direct interaction with objects displayed in the runtime environment.

The 2711P-T12C4D8 ships with a weight and dimensions of approximately 10 pounds and 20 x 14 x 8 inches. Ethernet IRP(Ethernet Industrial Protocol) is an open industrial network that supports real-time I/O messages and message exchange. By using networking and standard Ethernet connectivity, the Ethernet port is connected to the controller on the Ethernet /IP network. This port can be used for application transfer and printing. The Ethernet /IP screen displays data and allows the user to modify some Ethernet /IP communication Settings for the PanelView terminal. The module has its own unique IP address. This port has an RJ45 10/100ba se-T connector for network communication, which supports MDI/MDI-X connectivity. Parameters are downloaded with the application.
