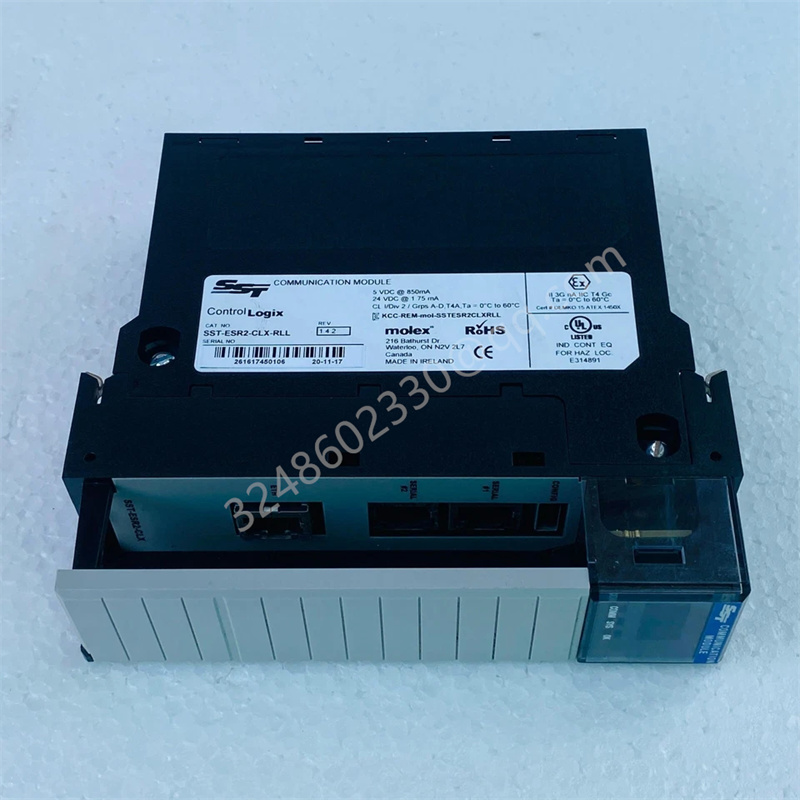

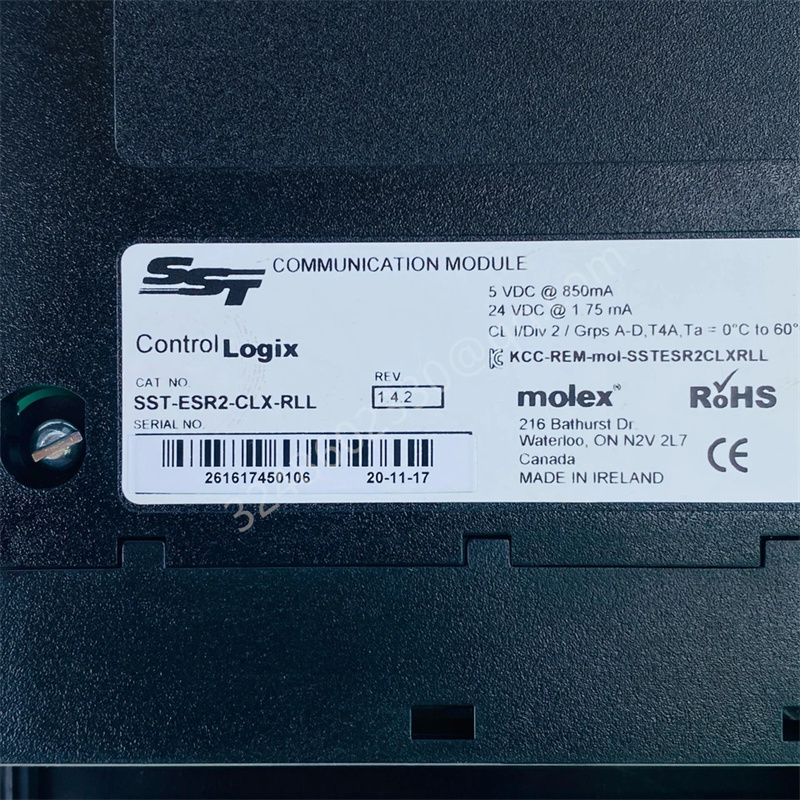

SST-ESR2-CLX-RLL 是一款用于 Rockwell Automation ControlLogix 系統的通信模塊，由 Molex（莫仕）公司生產。該模塊廣泛應用于工業自動化領域，用于連接 Modbus 和 Modbus TCP 網絡。

技術規格

通信接口：

1 個以太網端口（支持 Modbus TCP 和 Siemens 協議）。

2 個串行端口（支持 Modbus RTU/ASCII 協議）。

數據傳輸模式：

直接模式：Modbus 數據可直接映射到 I/O 處理器圖像（496 輸入字節/496 輸出字節）。

消息傳遞模式：基于 CIP 事務，可訪問模塊內存中存儲的 32K 寄存器中的 Modbus 數據。

配置與診斷：

提供基于 Windows 的配置工具，支持遠程配置和診斷。

前面板帶有 USB 接口，可用于模塊配置和固件升級。

兼容性：完全集成到 Rockwell Integrated Architecture Builder 和 ProposalWorks 中。

工作環境：

工作溫度范圍：-40℃ 至 +65℃。

濕度：0% 至 95%（非冷凝）。

應用場景

工業自動化：用于連接 Rockwell ControlLogix 系統與 Modbus 設備，實現數據交換和設備控制。

SCADA 系統：作為 Rockwell 網絡與 Modbus 兼容設備之間的橋梁。

遠程監控：通過以太網實現遠程配置和診斷。

優勢

無需編寫梯形邏輯：模塊配置簡單，無需編寫梯形邏輯。

高級診斷工具：提供可視化的診斷工具，便于調試和監控。

高可靠性：支持冗余配置，確保通信的高可靠性。

SST-ESR2-CLX-RLL is a communication module for the Rockwell Automation ControlLogix system, produced by Molex. This module is widely used in the field of industrial automation, for connecting Modbus and Modbus TCP networks. technical specifications Communication interface: 1 Ethernet port (supporting Modbus TCP and Siemens protocols). 2 serial ports (supporting Modbus RTU/ASCII protocol). Data transmission mode: Direct mode: Modbus data can be directly mapped to I/O processor images (496 input bytes/496 output bytes). Message passing mode: Based on CIP transactions, Modbus data stored in 32K registers in the module memory can be accessed. Configuration and Diagnosis: Provide a Windows based configuration tool that supports remote configuration and diagnostics. The front panel has a USB interface that can be used for module configuration and firmware upgrades. Compatibility: Fully integrated into Rockwell Integrated Architecture Builder and Proposal Works. Work environment: Working temperature range: -40 ℃ to+65 ℃. Humidity: 0% to 95% (non condensing). Application scenarios Industrial Automation: Used to connect Rockwell ControlLogix systems with Modbus devices for data exchange and device control. SCADA system: serves as a bridge between Rockwell networks and Modbus compatible devices. Remote monitoring: Remote configuration and diagnosis are achieved through Ethernet. advantage No need to write ladder logic: module configuration is simple, no need to write ladder logic. Advanced diagnostic tools: Provide visual diagnostic tools for easy debugging and monitoring. High reliability: Supports redundant configuration to ensure high reliability of communication.
