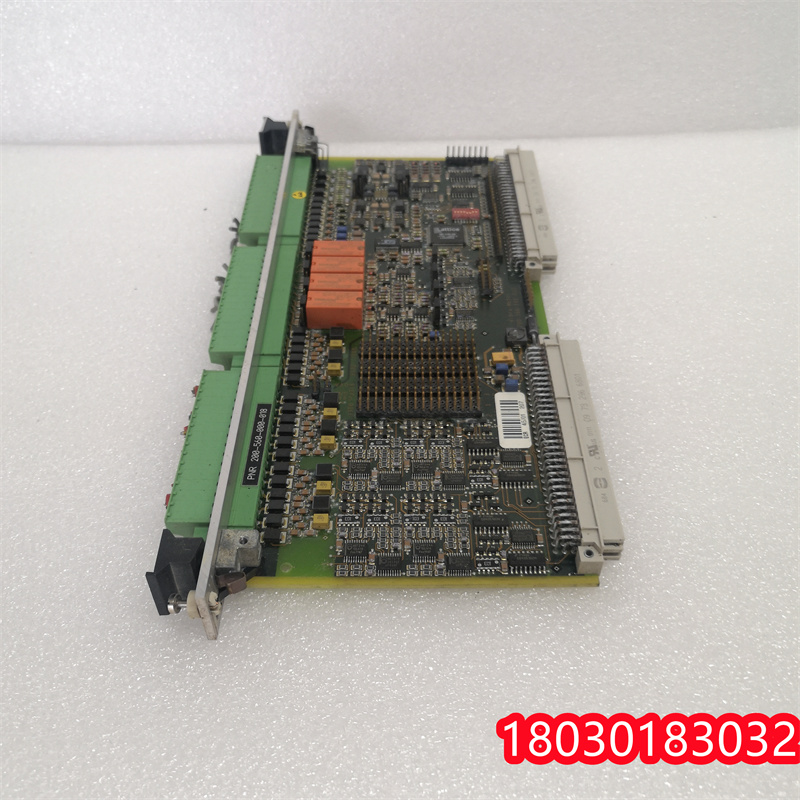

Vibro-Meter VM600 IOC4T 200-560-000-111 是一種輸入/輸出卡件，用于與 VM600 系列 MPC4 機械保護卡配合使用。以下是該卡件的一些關鍵特性和功能：

信號接口：IOC4T 卡作為信號接口，連接至 MPC4 機械保護卡的所有螺絲端子板（48個端子）。

多通道支持：支持 4 個動態信號輸入和 2 個轉速表（速度）輸入。

繼電器包含：卡件包含 4 個繼電器，這些繼電器可以由軟件控制，并且可歸因于報警信號。

可編程輸出：提供 32 個完全可編程的開路集電極輸出，這些輸出可以通過跳線選擇連接至 IRC4 和 RLC16 繼電器卡片。

緩沖和保護：提供緩沖的原始電壓和電流振動輸出，并且所有輸入和輸出都有 EMI 保護。

熱插拔功能：卡件支持帶電插入和取出（熱插拔）。

安裝方式：安裝在 VM600 (ABE04x) 機架的后部，并通過兩個連接器連接到機架背板。

通信協議：IOC4T 卡在從機模式下運行，并通過 P2 連接器使用工業包(IP)接口與 MPC4 通信。

前面板端子：前面板包含端子板連接器，用于連接來自傳感器的傳輸電纜。

應用領域：適用于石油、煤炭、金屬礦、非金屬礦和木材等工業領域，以及基本材料、動力和燃料的工業，金屬冶煉及加工、煉焦及焦炭、化學、化工原料、水泥、人造板以及電力、石油和煤炭加工等行業

The Vibro-Meter VM600 IOC4T 200-560-000-111 is an input/output card designed for use with the VM600 Series MPC4 mechanical protection card. Here are some of the key features and functions of the card:

Signal interface: The IOC4T card acts as a signal interface and is connected to all screw terminal boards (48 terminals) of the MPC4 mechanical protection card.

Multi-channel support: Four dynamic signal inputs and two tachometer (speed) inputs are supported.

Relay inclusion: The card contains 4 relays that can be controlled by software and attributed to alarm signals.

Programmable outputs: 32 fully programmable open collector outputs that can be connected to IRC4 and RLC16 relay cards via jumper selection.

Buffering and protection: The original voltage and current vibration outputs are buffered, and all inputs and outputs are protected by EMI.

Hot swap function: The card can be plugged in and removed (hot swap).

Installation method: It is installed at the rear of the VM600 (ABE04x) rack and connected to the chassis backplane through two connectors.

Communication protocol: The IOC4T card runs in slave mode and communicates with the MPC4 using the Industrial packet (IP) interface via the P2 connector.

Front panel terminals: The front panel contains terminal board connectors for connecting the transmission cable from the sensor.

Application fields: Suitable for oil, coal, metal ore, non-metal ore and wood and other industrial fields, as well as basic materials, power and fuel industries, metal smelting and processing, coking and coke, chemical, chemical raw materials, cement, wood-based panels and power, oil and coal processing industries
