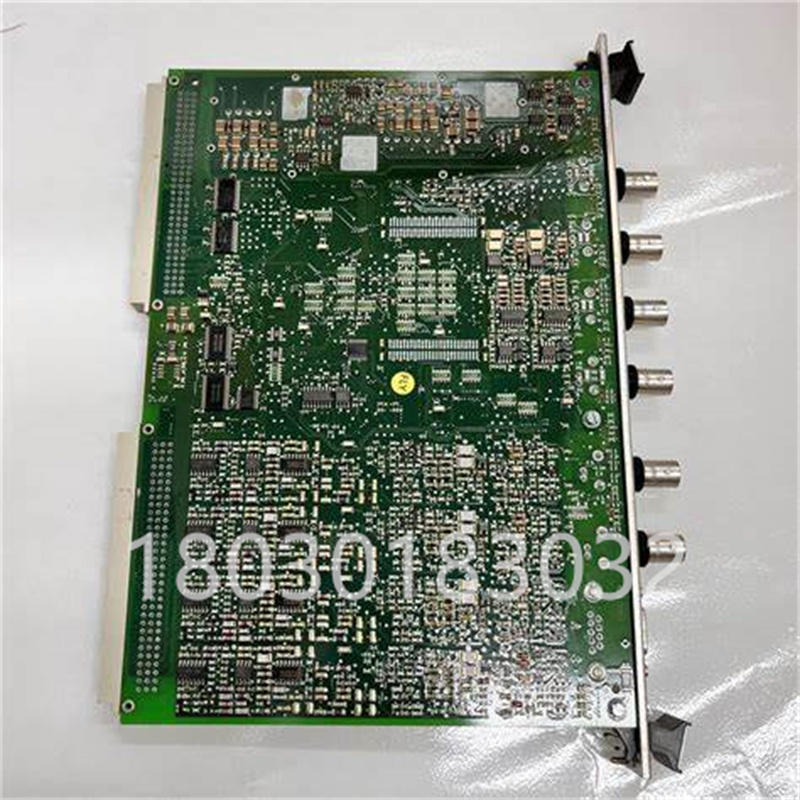

### MPC4 200-510-071-113 振動監測保護卡
#### 產品概述
MPC4 200-510-071-113 是一款高精度的機械保護卡，屬于 Vibro-Meter VM600 系列機械保護系統（MPS）。它主要用于監測和保護機械設備，防止?jié)撛诘墓收匣驌p壞。通過實時監控振動數據，幫助用戶及時發現設備異常情況并進行維護。
#### 技術規格
- **輸入通道**：
- 4個動態信號通道（加速度、速度、位移信號）。
- 2個轉速計通道。
- **測量范圍**：
- 動態信號：0至±10V AC。
- 轉速計：支持機器速度監測。
- **頻率范圍**：0.1 Hz至10 kHz。
- **數據采樣率**：高達每秒256次。
- **存儲容量**：可以存儲10,000條數據。
- **報警功能**：
- 幅值報警、頻率報警、相位報警等。
- 2個繼電器輸出和2個報警信號。
- **通信接口**：RS-232、RS-485、以太網。
- **工作溫度**：-20°C至+70°C。
- **尺寸**：12.7 cm x 5.1 cm x 17.8 cm。
- **重量**：0.4 kg。
#### 功能特點
- **高精度監測**：采用高精度傳感器和信號處理技術，提供精確的振動和轉速測量。
- **多通道監測**：能夠同時監測多路振動信號，滿足不同應用需求。
- **靈活的保護功能**：提供多種保護功能，可根據實際需要進行配置。
- **可編程設置**：報警閾值、跳閘水平和其他參數可針對特定設備和應用進行自定義。
- **實時監控與分析**：支持實時數據采集和分析，幫助用戶快速識別設備異常。
- **模塊化設計**：模塊化結構，方便安裝和維護。
#### 應用領域
MPC4 200-510-071-113 廣泛應用于以下領域：
- **電力行業**：發電廠、變電站。
- **石油和天然氣行業**：煉油廠、化工廠。
- **制造業**：工業生產線。
- **礦業**：采礦設備。
- **航空航天**：飛機發動機保護。
#### 優勢
- **高可靠性**：采用冗余設計，確保系統運行穩定。
- **符合安全標準**：符合SIL 2標準，適用于安全關鍵應用。
- **易于安裝與擴展**：提供多種安裝選項，支持模塊化擴展。
- **數據記錄與分析**：具備數據保留和記錄功能，便于后續分析和報告。
MPC4 200-510-071-113 振動監測保護卡憑借其高性能、多功能和高可靠性，成為工業自動化和機械保護系統中的重要組件。
| V7768-320001 350-930100776 |
| V7768-320000 |
| V7768-312001 350-930100776 |
| 685-247270-001 |
| SR489-P5-LO-A20-E |
| VMIVME-7750 VMIVME-7750 |
| H20C1-1 |
| 61-428059-00 |
| H201TI |
| 1900/65A-01-01-03-00-01 |
| VMIVME-7750 VMIVME 7750 |
| H20C1-1 |
| 61-428059-00 |
| H201T1 |
| 1900/65A-01-01-03-00-01 |
| VMM600 RPS6U 200-582-500-0 |
| 1900/65A-01-01-03-00-01 |
| PCD235A101 3BHE032025R01 |
| 1900/65A-01-01-03-00-01 |
| 4351B |
| F8650X 984865065 |
| 04240FD11234A |
| VM600 MPC4 200-510-071-11 |
| 369-HI-R-0-0-0 |
| 1900/65A-01-01-03-00-01 |
| AAP3798102-00037 |
| 1900/65A-01-01-03-00-01 |
| VM600 RPS6U 200-582-500-0 |
| 1900/65A-01-01-03-00-01 |
| PCD235A101 3BHE032025R01 |
| 4351B |
| F8650X 984865065 |
| 04240FD11234A |
| VM600 MPC4 200-510-071-11 |
| 369-HI-R-0-0-0 |
| 1900/65A-01-01-03-00-01 |
| AAP3798102-00037 |
###MPC4 200-510-071-113 Vibration Monitoring and Protection Card
####Product Overview
MPC4 200-510-071-113 is a high-precision mechanical protection card belonging to the Vibro Meter VM600 series mechanical protection system (MPS). It is mainly used for monitoring and protecting mechanical equipment to prevent potential malfunctions or damage. By monitoring vibration data in real-time, it helps users detect equipment abnormalities in a timely manner and perform maintenance.
####Technical specifications
-* * Input channel * *:
-Four dynamic signal channels (acceleration, velocity, displacement signals).
-Two tachometer channels.
-Measurement range:
-Dynamic signal: 0 to ± 10V AC.
-Tachometer: Supports machine speed monitoring.
-Frequency range: 0.1 Hz to 10 kHz.
-* * Data sampling rate * *: up to 256 times per second.
-* * Storage capacity * *: can store 10000 pieces of data.
-* * Alarm function * *:
-Amplitude alarm, frequency alarm, phase alarm, etc.
-Two relay outputs and two alarm signals.
-Communication interface: RS-232, RS-485, Ethernet.
-Working temperature: -20 ° C to+70 ° C.
-* * Size * *: 12.7 cm x 5.1 cm x 17.8 cm.
-Weight: 0.4 kg.
####Functional Features
-High precision monitoring: using high-precision sensors and signal processing technology to provide accurate vibration and speed measurements.
-Multi channel monitoring: capable of simultaneously monitoring multiple vibration signals to meet different application requirements.
-* * Flexible protection function * *: Provides multiple protection functions that can be configured according to actual needs.
-* * Programmable settings * *: Alarm thresholds, trip levels, and other parameters can be customized for specific devices and applications.
-Real time monitoring and analysis: Supports real-time data collection and analysis, helping users quickly identify device abnormalities.
-Modular design: Modular structure for easy installation and maintenance.
####Application Fields
MPC4 200-510-071-113 is widely used in the following fields:
-Power industry: power plants, substations.
-Oil and gas industry: refineries, chemical plants.
-Manufacturing industry: Industrial production lines.
-Mining: Mining equipment.
-Aerospace: Aircraft engine protection.
####Advantages
-* * High reliability * *: Adopting redundant design to ensure stable system operation.
-Compliant with safety standards: Compliant with SIL 2 standards, suitable for safety critical applications.
-Easy to install and expand: Provides multiple installation options and supports modular expansion.
-* * Data Recording and Analysis * *: Equipped with data retention and recording functions, facilitating subsequent analysis and reporting.
The MPC4 200-510-071-113 vibration monitoring and protection card has become an important component in industrial automation and mechanical protection systems due to its high performance, multifunctionality, and high reliability.
