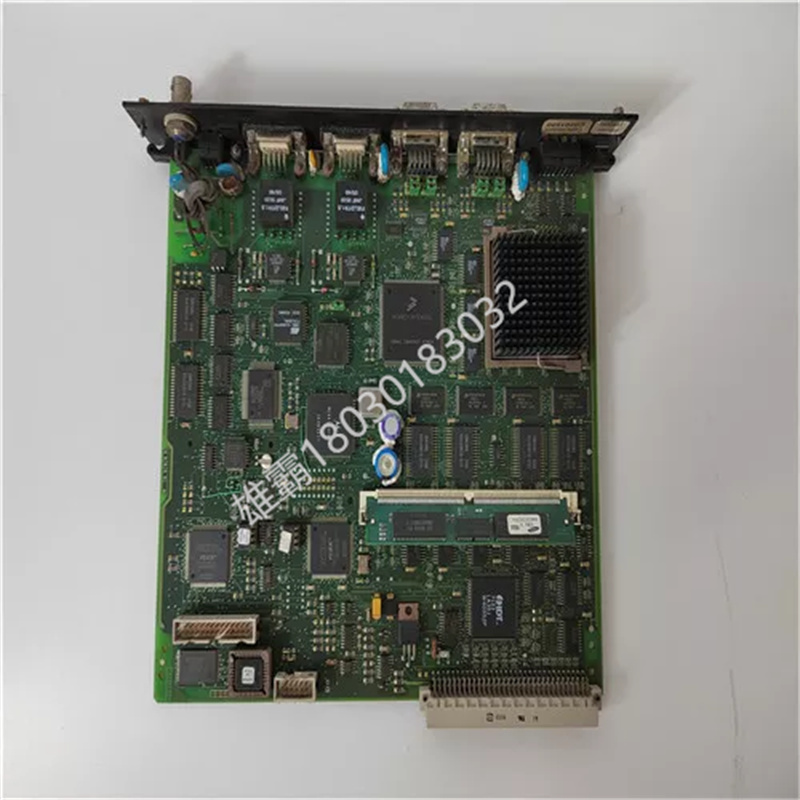

ALSTOM UT150-1 繼電保護裝置模塊板卡是阿爾斯通（ALSTOM）公司推出的一款用于電力系統繼電保護的核心設備模塊。

一、產品概述

ALSTOM UT150-1 繼電保護裝置模塊板卡是專為電力系統繼電保護設計的硬件模塊，通常集成于繼電保護裝置中，承擔數據采集、邏輯運算、信號輸出等關鍵功能。該模塊板卡基于先進的數字信號處理技術（DSP）和現場可編程門陣列（FPGA）設計，具備高可靠性、快速響應和靈活配置的特點。

二、技術特點

高性能硬件架構

采用高性能 DSP 和 FPGA 芯片，支持多通道高速數據采集與處理。

具備大容量存儲空間，可存儲故障錄波數據和運行日志。

豐富的保護功能

支持多種繼電保護功能，如過流保護、差動保護、距離保護、重合閘等。

可通過軟件配置實現保護功能的靈活擴展和定制。

高可靠性設計

采用冗余設計和自檢機制，確保系統在故障情況下仍能穩定運行。

具備電磁兼容（EMC）和抗干擾能力，適應惡劣的工業環境。

靈活的通信接口

支持多種通信協議（如 IEC 61850、Modbus、DNP3 等），方便與上位機或其他設備進行數據交互。

提供光纖通信接口，支持長距離、高速率的數據傳輸。

友好的人機界面

配備液晶顯示屏和按鍵，支持本地參數設置和狀態查看。

可通過上位機軟件進行遠程監控和配置。

三、應用場景

ALSTOM UT150-1 繼電保護裝置模塊板卡廣泛應用于電力系統的各個環節，包括：

發電廠：用于發電機、變壓器等主設備的保護。

變電站：用于輸電線路、母線、電容器等設備的保護。

工業用戶：用于工廠配電系統的保護和控制。

新能源領域：用于風電、光伏等分布式能源的接入和保護。

四、市場情況

品牌優勢

ALSTOM 作為全球知名的電力和自動化解決方案提供商，其繼電保護產品在全球市場具有較高的知名度和市場份額。

產品技術成熟，性能穩定，廣泛應用于國內外大型電力項目。

價格與服務

價格因配置和功能不同而有所差異，通常需要根據具體項目需求進行報價。

提供全面的技術支持和售后服務，包括產品培訓、現場調試、故障維修等。

替代與兼容性

可與其他品牌的繼電保護設備配合使用，但需注意通信協議和接口的兼容性。

在老舊設備改造項目中，可通過更換模塊板卡實現設備升級。

五、注意事項

安裝與調試

需由專業技術人員進行安裝和調試，確保設備正常運行。

調試過程中需嚴格按照產品說明書和相關標準進行。

維護與保養

定期檢查設備運行狀態，及時清理灰塵和雜物。

定期備份重要數據，防止數據丟失。

安全規范

遵守電力行業相關安全規范，確保設備安裝和使用過程中的安全。

在進行設備維護或檢修時，需切斷電源并采取必要的安全措施。

The ALSTOM UT150-1 relay protection module board is a core equipment module developed by Alstom for power system relay protection.

1、 Product Overview

The ALSTOM UT150-1 relay protection device module board is a hardware module designed specifically for power system relay protection. It is usually integrated into relay protection devices and is responsible for key functions such as data acquisition, logical operations, and signal output. This module board is designed based on advanced digital signal processing technology (DSP) and field programmable gate array (FPGA), and has the characteristics of high reliability, fast response, and flexible configuration.

2、 Technical features

High performance hardware architecture

Adopting high-performance DSP and FPGA chips, supporting multi-channel high-speed data acquisition and processing.

Equipped with large storage space, it can store fault recording data and operation logs.

Rich protection functions

Support multiple relay protection functions, such as overcurrent protection, differential protection, distance protection, reclosing, etc.

Flexible extension and customization of protection functions can be achieved through software configuration.

High reliability design

Adopting redundant design and self checking mechanism to ensure stable operation of the system in case of faults.

Capable of electromagnetic compatibility (EMC) and anti-interference, suitable for harsh industrial environments.

Flexible communication interface

Supports multiple communication protocols (such as IEC 61850, Modbus, DNP3, etc.) to facilitate data exchange with the host computer or other devices.

Provide fiber optic communication interface, supporting long-distance and high-speed data transmission.

Friendly human-machine interface

Equipped with LCD display and buttons, supporting local parameter settings and status viewing.

Remote monitoring and configuration can be carried out through upper computer software.

3、 Application scenarios

The ALSTOM UT150-1 relay protection device module board is widely used in various aspects of the power system, including:

Power plant: used for the protection of main equipment such as generators and transformers.

Substation: used for the protection of transmission lines, busbars, capacitors and other equipment.

Industrial users: used for protection and control of factory power distribution systems.

In the field of new energy, it is used for the access and protection of distributed energy sources such as wind power and photovoltaics.

4、 Market situation

Brand advantage

As a globally renowned provider of power and automation solutions, ALSTOM's relay protection products have a high level of recognition and market share in the global market.

The product technology is mature, the performance is stable, and it is widely used in large-scale power projects at home and abroad.

Price and Service

The price may vary due to different configurations and functions, and usually needs to be quoted based on specific project requirements.

Provide comprehensive technical support and after-sales service, including product training, on-site debugging, fault repair, etc.

Substitution and Compatibility

Can be used in conjunction with other brands of relay protection equipment, but attention should be paid to the compatibility of communication protocols and interfaces.

In the renovation project of old equipment, equipment upgrade can be achieved by replacing module boards.

5、 Precautions

Installation and debugging

Installation and debugging must be carried out by professional technicians to ensure the normal operation of the equipment.

During the debugging process, it is necessary to strictly follow the product manual and relevant standards.

maintenance

Regularly check the operation status of the equipment and promptly clean up dust and debris.

Regularly backup important data to prevent data loss.

Safety regulations

Comply with relevant safety regulations in the power industry to ensure the safety of equipment installation and use.

During equipment maintenance or repair, it is necessary to cut off the power and take necessary safety measures.
